Intel Manipulator Integration#

Overview#

The movensys_intel_ws workspace is a standalone ROS 2 application that integrates MoveIt2 with WMX ROS2 for manipulator control on Intel x86_64 platforms. It provides a progressive 3-stage workflow that takes the Dobot CR3A from basic trajectory validation through vision-guided pick-and-place with real-time obstacle avoidance – all using CPU-based algorithms.

The workspace is located at:

~/workspaces/movensys_intel_ws/
Stage Summary#

Stage

Capability

Description

Key Component

1

Basic Trajectory

Cartesian/joint motion with MoveIt2 OMPL planner

MoveIt2 (OMPL/CHOMP/Pilz)

2

AprilTag Pick & Place

Vision-based detection and autonomous manipulation

pyapriltags + Intel RealSense

3

OctoMap Obstacle Avoidance

3D voxel mapping for collision-free planning

OctoMap + Intel RealSense depth

Each stage can run in three environments:

  • Simulation – Gazebo provides physics simulation and sensor emulation. The simulation_action bridge node forwards MoveIt2 trajectories to the /gazebo_position_controller/commands topic (8 values: 6 joints + 2 gripper).

  • Hardware-in-the-Loop (HiL) – Gazebo acts as a digital twin while the real robot is driven by WMX ROS2 over EtherCAT. Both systems share the same /joint_states topic.

  • Real Robot – No simulator. WMX ROS2 drives the physical robot directly and MoveIt2 plans in real time.

Architecture#

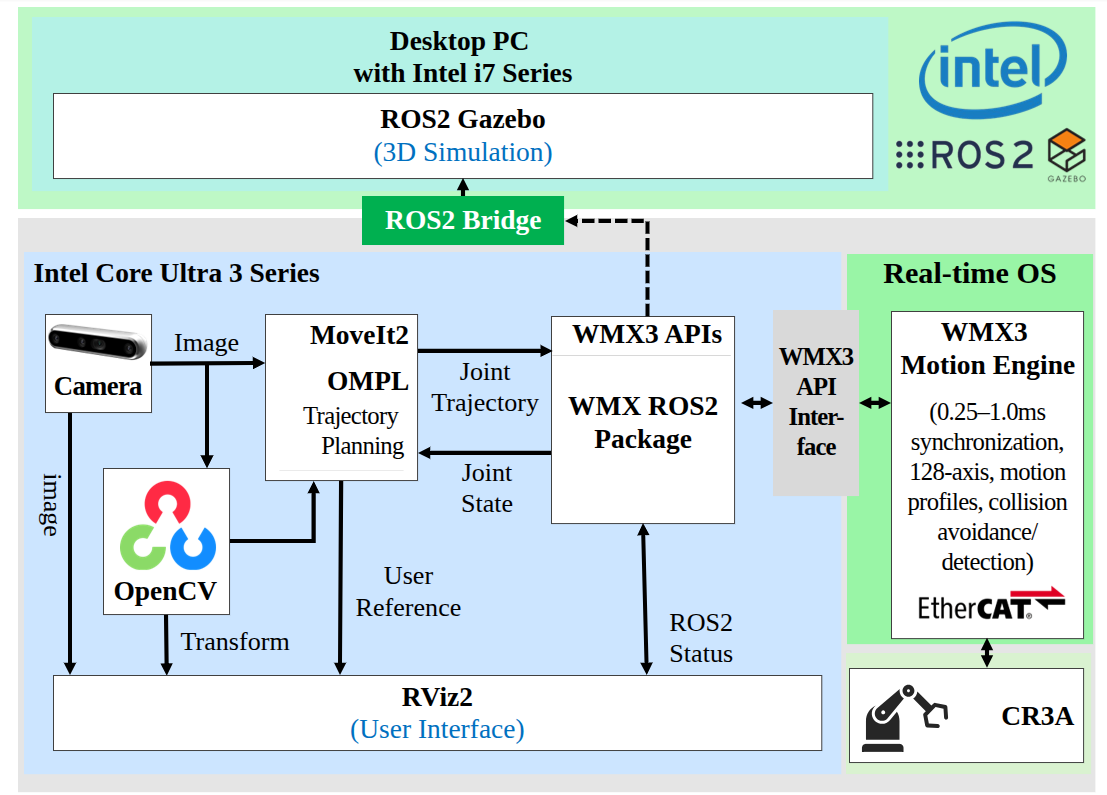

Intel Manipulator architecture example

Intel Manipulator — system architecture overview#

Packages#

The workspace contains five ROS 2 packages (plus copies of the core WMX ROS2 packages):

Package

Purpose

movensys_manipulator_description

URDF/Xacro robot model for the Dobot CR3A with table, stand, bracket, gripper, and picker links. Provides STL mesh assets, Gazebo simulation support (gz_ros2_control), RViz launch files, and the gazebo_position_controller configuration.

movensys_manipulator_moveit_config

MoveIt2 configuration: SRDF, joint limits, KDL kinematics solver, OMPL/CHOMP/Pilz planners, controller configuration, stage executables (simulation_action, stage1_trajectory_cpp, stage2_apriltag_cpp, stage3_octomap_cpp), the MoveIt2Client C++ library, RealSense camera configs, OctoMap sensors_3d config, and AprilTag detection script.

movensys_manipulator_intel_config

Intel-platform-specific bringup launch files, additional demo executables (trajectory_demo_cpp, pick_and_place_cpp), AprilTag detection configuration, and vision pipeline launch files.

wmx_ros2_package

Core WMX ROS2 driver package (copied into the workspace).

wmx_ros2_message

Core WMX ROS2 message definitions (copied into the workspace).

Kinematic Chain#

world -> world_manipulator -> table -> stand -> Link0
  -> joint1 (revolute) -> Link1
    -> joint2 (revolute) -> Link2
      -> joint3 (revolute) -> Link3
        -> joint4 (revolute) -> Link4
          -> joint5 (revolute) -> Link5
            -> joint6 (revolute) -> Link6
              -> bracket (fixed) -> gripper (fixed)
                -> picker_1_joint (prismatic, 0--0.045 m) -> picker_1
                -> picker_2_joint (prismatic, 0--0.045 m) -> picker_2

The arm group movensys_manipulator_arm is defined as the chain from Link0 to Link6 (6 revolute joints: joint1 through joint6, each with limits of -3.14 to 3.14 rad). The end-effector group movensys_manipulator_eef includes the bracket and gripper links.

The URDF is composed from four xacro files:

  • stage.xacro – World frame, table, and stand (static links)

  • cr3a.xacro – CR3A 6-DOF arm macro with link inertials and STL meshes

  • control.xacro – gz_ros2_control hardware interface (position command for all 8 joints)

  • transmission.xacro – SimpleTransmission for each joint

Source Files#

movensys_manipulator_moveit_config executables:

Source File

Description

src/simulation_action.cpp

Gazebo bridge: subscribes to /joint_states, serves FollowJointTrajectory action on /movensys_manipulator_arm_controller/follow_joint_trajectory, and publishes 8-value Float64MultiArray to /gazebo_position_controller/commands. Handles gripper via /wmx/set_gripper service (SetBool). Trajectory points are replayed with timing from time_from_start intervals.

src/moveit2_client.cpp

Shared MoveIt2Client library wrapping MoveGroupInterface. Provides: absoluteBaseEefCartesian (Cartesian path with TOTG time parameterization), absoluteBaseEefJointMovement (IK + joint-space plan), relativeBaseEefCartesian, relativeToolEefCartesian, jointMovement, setGripper, lookupTF, getCurrentEefPose.

src/stage1_trajectory.cpp

Stage 1 demo: absolute Cartesian, relative base Cartesian, relative tool Cartesian, joint movement, and gripper open/close. vel_scale=0.3, acc_scale=0.3, planning_time=1.0.

src/stage2_apriltag.cpp

Stage 2 demo: AprilTag visual servoing pick-and-place. Tracks 4 tags (tag36h11:5, tag36h11:9, tag36h11:7, tag36h11:11) using iterative lookupTF + relativeToolEefCartesian convergence loop (tolerance: 0.03 m position, 0.05 rad orientation). Places objects in predefined box positions. vel_scale=0.7, acc_scale=0.7.

src/stage3_octomap.cpp

Stage 3 demo: OctoMap obstacle-aware planning. Phase 1 scans 4 poses to build OctoMap (3 s dwell per pose). Phase 2-4 execute Cartesian, joint, and relative movements with OMPL planning around obstacles. vel_scale=0.3, acc_scale=0.3, planning_time=5.0, planning_attempts=10.

scripts/apriltag_detector.py

Python ROS 2 node using pyapriltags for CPU-based AprilTag detection. Subscribes to RealSense camera image and camera_info topics, broadcasts TF for each detected tag as tag36h11:<id>.

movensys_manipulator_intel_config executables:

Source File

Description

src/trajectory_demo.cpp

Trajectory demo: absolute Cartesian, relative base/tool Cartesian, joint movement, and gripper operation. vel_scale=1.0, acc_scale=1.0, planning_attempts=5.

src/pick_and_place.cpp

8-step pick-and-place demo: home -> open gripper -> pre-pick -> pick (Cartesian descent, max_step=0.01) -> close gripper -> retract -> pre-place -> place -> open -> home. vel_scale=0.5, acc_scale=0.5, planning_time=2.0, planning_attempts=10.

Data Flow#

Simulation mode (Gazebo):

MoveIt2 (OMPL/CHOMP/Pilz)
  -> FollowJointTrajectory action
    -> simulation_action node
      -> /gazebo_position_controller/commands (Float64MultiArray, 8 values)
        -> Gazebo gz_ros2_control
          -> /joint_states -> MoveIt2

Hardware-in-the-Loop (Gazebo + WMX ROS2):

MoveIt2 (OMPL/CHOMP/Pilz)
  -> FollowJointTrajectory action
    -> WMX ROS2 action server -> EtherCAT -> Dobot CR3A
    -> simulation_action -> Gazebo (digital twin)
  <- /joint_states <- WMX ROS2

Real Robot (WMX ROS2 only):

MoveIt2 (OMPL/CHOMP/Pilz)
  -> FollowJointTrajectory action
    -> WMX ROS2 action server -> EtherCAT -> Dobot CR3A
  <- /joint_states <- WMX ROS2

Prerequisites#

Hardware#

  • Intel x86_64 PC (Ubuntu 22.04 or 24.04)

  • Dobot CR3A 6-DOF collaborative robot arm

  • WMX EtherCAT motion controller (for physical robot operation)

  • Intel RealSense camera (for Stages 2 and 3 – mounted on Link6)

Software#

  • ROS 2 Humble (Ubuntu 22.04) or Jazzy (Ubuntu 24.04)

  • MoveIt2 (moveit_ros_planning_interface, moveit_msgs)

  • Gazebo (ros_gz_sim, gz_ros2_control) for simulation mode

  • CycloneDDS middleware (rmw_cyclonedds_cpp)

  • LMX(WMX Runtime) installed at /opt/lmx/ for hardware control

  • Python packages: pyapriltags, scipy (for Stage 2)

  • realsense2_camera ROS 2 package (for Stages 2 and 3)

Installation#

  1. Create the workspace:

    mkdir -p ~/workspaces/movensys_intel_ws/src
cd ~/workspaces/movensys_intel_ws/src

  2. Clone the repositories:

    git clone git@bitbucket.org:mvs_app/movensys_intel_manipulator.git
git clone git@bitbucket.org:mvs_app/movensys_manipulator_intel_config.git
git clone git@bitbucket.org:mvs_app/wmx_ros2_message.git
git clone git@bitbucket.org:mvs_app/wmx_ros2_package.git

  3. Install ROS 2 dependencies:

    cd ~/workspaces/movensys_intel_ws
rosdep install --from-paths src --ignore-src -r -y

  4. Install Python dependencies (for AprilTag detection):

    pip install pyapriltags scipy

  5. Configure the environment (add to ~/.bashrc ):

    source /opt/ros/${ROS_DISTRO}/setup.bash
export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp

  6. Build the workspace:

    cd ~/workspaces/movensys_intel_ws
colcon build --symlink-install
source install/setup.bash

Configuration#

MoveIt2 Configuration#

The MoveIt2 configuration is in movensys_manipulator_moveit_config/config/:

File

Description

movensys_manipulator.srdf

Arm group movensys_manipulator_arm (chain Link0 -> Link6), end-effector group movensys_manipulator_eef (bracket + gripper), named states: initial (ready pose), zero (all zeros), test. Full collision disable matrix for adjacent and non-colliding link pairs.

movensys_manipulator.urdf.xacro

MoveIt URDF: includes the description xacro and adds mock_components/GenericSystem ros2_control for planning without hardware.

joint_limits.yaml

All joints: max_velocity=2.5 rad/s, max_acceleration=2.5 rad/s2.

kinematics.yaml

KDL kinematics solver: resolution 0.005, timeout 0.1 s.

moveit_controllers.yaml

MoveItSimpleControllerManager with movensys_manipulator_arm_controller (FollowJointTrajectory action for joint1 through joint6). allowed_execution_duration_scaling=1.0, allowed_start_tolerance=0.01.

sensors_3d.yaml

OctoMap sensor plugin: occupancy_map_monitor/PointCloudOctomapUpdater subscribing to /camera_hand/depth/color/points, max_range=2.0, max_update_rate=1.0, padding_offset=0.03.

RealSense Camera Configuration#

Two RealSense configurations are provided in movensys_manipulator_moveit_config/config/:

File

Description

realsense_hand.yaml

Color only: 640x480 at 15 fps. Depth disabled. Used for AprilTag detection (Stage 2).

realsense_hand_depth.yaml

Color + depth: 640x480 at 15 fps for both streams. Pointcloud and depth alignment enabled. Used for OctoMap (Stage 3).

Gazebo Simulation Configuration#

The Gazebo controller is configured in movensys_manipulator_description/urdf/control.yaml:

  • Controller manager update rate: 200 Hz

  • gazebo_position_controller: JointGroupPositionController for all 8 joints (6 arm + 2 gripper) with per-joint PID gains

  • joint_state_broadcaster: publishes /joint_states

AprilTag Configuration#

The AprilTag configuration for the Intel platform is in movensys_manipulator_intel_config/config/apriltag_config.yaml:

  • Tag family: tag36h11

  • Tag size: 0.04 m (40 mm)

  • Minimum detections for stability: 5

  • Detector parameters: nthreads=2, quad_decimate=2.0, refine_edges=true

  • Camera mount: Link6 parent, z offset 0.04 m, roll and yaw 90 degrees

Launch Files#

movensys_manipulator_description launches (Gazebo simulation):

Launch File

Description

simulation_1.launch.py

Full Gazebo simulation: spawns robot, loads joint_state_broadcaster and gazebo_position_controller, bridges /clock.

hil_1.launch.py

Hardware-in-the-loop: Gazebo with gazebo_position_controller only (no joint_state_broadcaster – WMX ROS2 provides /joint_states).

demo_1.launch.py

Identical to hil_1.launch.py. Used for real robot demos.

movensys_manipulator_moveit_config launches:

Launch File

Description

movensys_manipulator_moveit.launch.py

MoveIt2: move_group node with OMPL/CHOMP/Pilz planners, robot_state_publisher, RViz with MotionPlanning plugin.

camera_hand.launch.py

RealSense camera driver with configurable camera mount TF (Link6 -> camera_hand_link). Default: z offset 0.05 m.

stage1_trajectory.launch.py

Launches stage1_trajectory_cpp with MoveIt config parameters.

stage2_apriltag.launch.py

Launches stage2_apriltag_cpp with MoveIt config parameters.

stage3_octomap.launch.py

Full OctoMap pipeline: RealSense (depth + pointcloud), camera mount TF, move_group with OctoMap (octomap_resolution=0.025), RViz, and stage3_octomap_cpp demo node. Configurable launch_demo argument.

movensys_manipulator_intel_config launches:

Launch File

Description

bringup.launch.py

System bringup: includes MoveIt2 launch and WMX ROS2 driver (wmx_ros2_manipulator_dobot_cr3a.launch.py). Args: launch_wmx, launch_rviz, use_sim_time.

moveit_only.launch.py

MoveIt2 with joint_state_publisher_gui (no hardware). For testing planning without hardware.

trajectory_demo.launch.py

Launches trajectory_demo_cpp with MoveIt config.

pick_and_place.launch.py

Launches pick_and_place_cpp with MoveIt config.

bringup_with_vision.launch.py

Full stack: MoveIt2 + WMX driver + RealSense + AprilTag detection. Args: tag_size (default 0.04), tag_family (tag36h11), camera_serial, launch_vision.

apriltag_detection.launch.py

RealSense camera + AprilTag detector + camera mount static TF. Configurable: color/depth resolution, camera serial, tag parameters, camera mount position (parent: Link6, default z: 0.04 m).

webcam_apriltag.launch.py

USB webcam AprilTag detection for testing without RealSense.

Usage#

Stage 1: Basic Trajectory#

Stage 1 validates motion planning and execution with MoveIt2. It exercises all motion types: absolute Cartesian, relative base/tool Cartesian, joint movement, and gripper control.

1a. Simulation (Gazebo):

Terminal 1 – Start Gazebo simulation:

ros2 launch movensys_manipulator_description simulation_1.launch.py

Terminal 2 – Start the simulation bridge:

ros2 run movensys_manipulator_moveit_config simulation_action

Terminal 3 – Start MoveIt2:

ros2 launch movensys_manipulator_moveit_config movensys_manipulator_moveit.launch.py use_sim_time:=true

Terminal 4 – Run Stage 1 trajectory:

ros2 launch movensys_manipulator_moveit_config stage1_trajectory.launch.py use_sim_time:=true

1b. Hardware-in-the-Loop (Gazebo + WMX ROS2):

Terminal 1 – Start Gazebo HIL:

ros2 launch movensys_manipulator_description hil_1.launch.py

Terminal 2 – Start WMX ROS2 driver:

sudo --preserve-env ros2 launch wmx_ros2_package wmx_ros2_manipulator_dobot_cr3a.launch.py

Terminal 3 – Start MoveIt2:

ros2 launch movensys_manipulator_moveit_config movensys_manipulator_moveit.launch.py

Terminal 4 – Run Stage 1 trajectory:

ros2 launch movensys_manipulator_moveit_config stage1_trajectory.launch.py

1c. Real Robot (WMX ROS2 only):

Terminal 1 – Start Gazebo for visualization:

ros2 launch movensys_manipulator_description demo_1.launch.py

Terminal 2 – Start WMX ROS2 driver:

sudo --preserve-env ros2 launch wmx_ros2_package wmx_ros2_manipulator_dobot_cr3a.launch.py

Terminal 3 – Start MoveIt2:

ros2 launch movensys_manipulator_moveit_config movensys_manipulator_moveit.launch.py

Terminal 4 – Run Stage 1 trajectory:

ros2 launch movensys_manipulator_moveit_config stage1_trajectory.launch.py

Alternative demos from movensys_manipulator_intel_config:

Using the bringup launch (combines MoveIt2 + WMX driver):

# Terminal 1: Bringup (MoveIt2 + WMX ROS2 driver)
sudo --preserve-env ros2 launch movensys_manipulator_intel_config bringup.launch.py

# Terminal 2: Trajectory demo
ros2 launch movensys_manipulator_intel_config trajectory_demo.launch.py

# -- OR --

# Terminal 2: Pick-and-place demo
ros2 launch movensys_manipulator_intel_config pick_and_place.launch.py

Stage 2: AprilTag Pick-and-Place#

Stage 2 adds vision-guided manipulation using Intel RealSense camera and CPU-based AprilTag detection via pyapriltags. The robot detects tag36h11 tags, performs visual servoing to center the end-effector over each tag, picks the object, and places it in a predefined box position.

The visual servoing loop works as follows:

  1. Move to scan pose

  2. Look up TF from camera_hand_color_optical_frame to tag36h11:<id>

  3. If tag offset exceeds tolerance (0.03 m position, 0.05 rad orientation), execute relativeToolEefCartesian correction

  4. Repeat until converged

  5. Apply tag-to-target offset (x=0.01, y=-0.065)

  6. Descend 0.21 m, close gripper, retract

  7. Move to box position, release

Prerequisites:

pip install pyapriltags scipy
sudo apt install ros-${ROS_DISTRO}-realsense2-camera

2a. Hardware-in-the-Loop:

Terminal 1 – Start Gazebo HIL:

ros2 launch movensys_manipulator_description hil_1.launch.py

Terminal 2 – Start WMX ROS2 driver:

sudo --preserve-env ros2 launch wmx_ros2_package wmx_ros2_manipulator_dobot_cr3a.launch.py

Terminal 3 – Start MoveIt2:

ros2 launch movensys_manipulator_moveit_config movensys_manipulator_moveit.launch.py

Terminal 4 – Start RealSense camera:

ros2 launch movensys_manipulator_moveit_config camera_hand.launch.py

Terminal 5 – Start AprilTag detector:

ros2 run movensys_manipulator_moveit_config apriltag_detector.py

Terminal 6 – Run Stage 2 pick-and-place:

ros2 launch movensys_manipulator_moveit_config stage2_apriltag.launch.py

2b. Real Robot:

Same as 2a but replace the Gazebo HIL terminal with the demo launch:

ros2 launch movensys_manipulator_description demo_1.launch.py

Alternative (using bringup_with_vision):

# Terminal 1: Full stack (MoveIt2 + WMX + RealSense + AprilTag)
sudo --preserve-env ros2 launch movensys_manipulator_intel_config bringup_with_vision.launch.py

# Terminal 2: Stage 2 pick-and-place
ros2 launch movensys_manipulator_moveit_config stage2_apriltag.launch.py

Stage 3: OctoMap Obstacle Avoidance#

Stage 3 adds 3D obstacle awareness using OctoMap (the CPU-based equivalent of NVIDIA NvBlox). A depth camera mounted on the end-effector builds a 3D voxel map of the workspace. MoveIt2 OMPL planner uses this map to generate collision-free trajectories.

The demo runs in four phases:

  1. Workspace scan – Move to 4 scan poses (overview, left, right, center), dwell 3 seconds at each to accumulate depth data into OctoMap

  2. Obstacle-aware Cartesian – Execute Cartesian moves through the workspace, OMPL plans around obstacles

  3. Obstacle-aware joint – Joint-space movements considering OctoMap obstacles

  4. Relative movements – Relative base-frame moves with obstacle avoidance

Prerequisites:

sudo apt install ros-${ROS_DISTRO}-realsense2-camera

All-in-one launch (includes camera, OctoMap, MoveIt2, demo):

ros2 launch movensys_manipulator_moveit_config stage3_octomap.launch.py

The stage3_octomap.launch.py launch starts:

  1. RealSense camera with depth + pointcloud (config: realsense_hand_depth.yaml)

  2. Static TF for camera mount (Link6 -> camera_hand_link)

  3. Robot state publisher

  4. MoveIt2 move_group with OctoMap enabled (octomap_resolution=0.025, octomap_frame=world_manipulator)

  5. RViz with OctoMap visualization

  6. stage3_octomap_cpp demo node

To skip the demo node and use interactively:

ros2 launch movensys_manipulator_moveit_config stage3_octomap.launch.py launch_demo:=false

With WMX ROS2 hardware, start the driver first:

# Terminal 1: WMX ROS2 driver
sudo --preserve-env ros2 launch wmx_ros2_package wmx_ros2_manipulator_dobot_cr3a.launch.py

# Terminal 2: OctoMap pipeline
ros2 launch movensys_manipulator_moveit_config stage3_octomap.launch.py

Comparison: Isaac vs Intel#

Feature

Isaac (Jetson Orin)

Intel (x86_64)

Motion planner

cuMotion (GPU-accelerated)

OMPL / CHOMP / Pilz (CPU)

AprilTag detection

isaac_ros_apriltag (GPU)

pyapriltags (CPU)

3D reconstruction

NvBlox (GPU TSDF)

OctoMap (CPU voxels)

Depth sensor topic

/front/stereo_camera/...

/camera_hand/depth/color/points

Simulator

Isaac Sim (Omniverse)

Gazebo (Open Source)

Trajectory bridge

/joint_command (Float64MultiArray)

/gazebo_position_controller/commands (Float64MultiArray)

Bridge values

6 values (arm only)

8 values (6 arm + 2 gripper)

How It Connects to WMX ROS2#

The Intel manipulator workspace follows the same integration pattern as all WMX ROS2 applications. The connection points are:

FollowJointTrajectory action – MoveIt2 sends planned trajectories to the WMX ROS2 action server at /movensys_manipulator_arm_controller/follow_joint_trajectory. In simulation, simulation_action handles this; with hardware, the WMX ROS2 driver’s action server takes over.

Joint states – The /joint_states topic (sensor_msgs/JointState) provides real-time joint feedback. In simulation, Gazebo publishes via joint_state_broadcaster; with hardware, the WMX ROS2 driver publishes from EtherCAT feedback.

Gripper control – The /wmx/set_gripper service (std_srvs/SetBool) controls the gripper via EtherCAT digital I/O. In simulation, simulation_action handles this by setting gripper positions in the 8-value command array (indices 6 and 7: 0.045 = closed, 0.000 = open).

WMX ROS2 driver launch – The bringup launch file includes the WMX ROS2 driver via:

IncludeLaunchDescription(
    PythonLaunchDescriptionSource([
        FindPackageShare('wmx_ros2_package'),
        '/launch/wmx_ros2_manipulator_dobot_cr3a.launch.py'
    ])
)

This requires sudo --preserve-env because the WMX EtherCAT driver needs kernel-level access for real-time communication.

Switching between simulation and hardware requires no code changes – only the launch configuration changes:

  • launch_wmx:=true enables the WMX ROS2 driver (hardware)

  • launch_wmx:=false disables it (simulation with simulation_action)

  • use_sim_time:=true enables Gazebo clock synchronization
