Isaac Sim Manipulator#

Overview#

The movensys_isaac_manipulator workspace is a standalone ROS 2 Humble application that integrates NVIDIA Isaac ROS with MoveIt2 for GPU-accelerated manipulator control. It provides a progressive 4-stage workflow that takes the Dobot CR3A from basic trajectory validation through vision-guided pick-and-place with real-time obstacle avoidance.

The workspace is located at:

~/manipulator_ros_ws/src/movensys_isaac_manipulator/
Stage Summary#

Stage

Capability

Description

Key NVIDIA Component

1

Basic Trajectory

Cartesian/joint motion with MoveIt2 OMPL planner

None (baseline)

2

cuMotion Planning

GPU-accelerated motion planning replaces OMPL

isaac_ros_cumotion

3

AprilTag Pick & Place

Vision-based detection and autonomous manipulation

isaac_ros_apriltag

4

NvBlox Obstacle Avoidance

3D volumetric mapping for collision-free planning

isaac_ros_nvblox

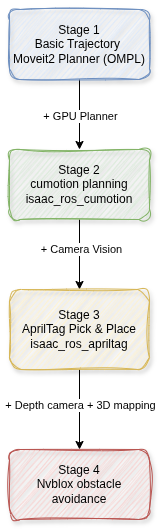

The diagram below shows the four stages and how each one builds on the previous:

Isaac Manipulator — 4-stage progressive capability workflow

Each stage can run in three environments:

  • Simulation – Isaac Sim provides both the physics engine and sensor simulation. The simulation_action bridge node forwards trajectories from MoveIt2 to Isaac Sim via the /joint_command topic.

  • Hardware-in-the-Loop (HiL) – Isaac Sim acts as a digital twin while the real robot is driven by WMX ROS2 over EtherCAT. Both systems share the same /joint_states topic.

  • Real Robot – No simulator. WMX ROS2 drives the physical robot directly and MoveIt2/cuMotion plans in real time.

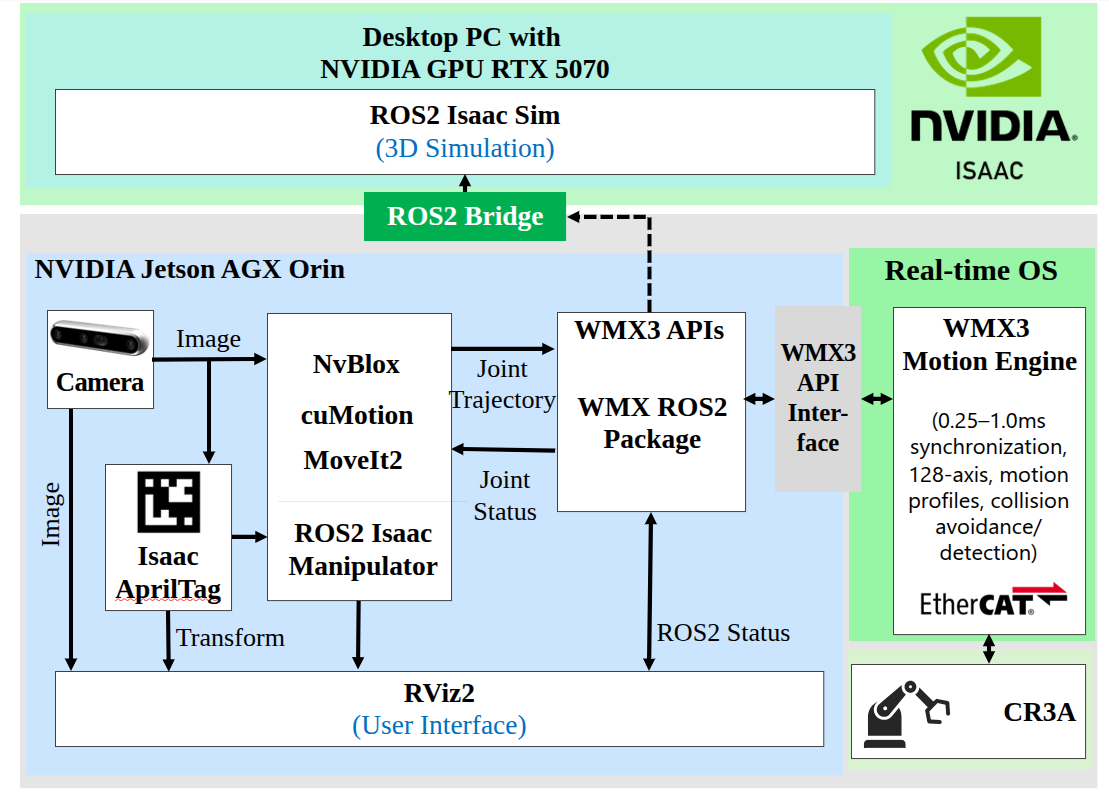

Architecture#

Isaac Manipulator architecture example

Packages#

The workspace contains three ROS 2 packages:

Package

Purpose

movensys_manipulator_description

URDF/Xacro robot model for the Dobot CR3A with table, stand, bracket, gripper, and picker links. Provides STL mesh assets and RViz launch files.

movensys_manipulator_moveit_config

MoveIt2 configuration: SRDF (planning group movensys_manipulator_arm as chain Link0 to Link6), joint limits (3.0 rad/s velocity, 3.0 rad/s2 acceleration for all joints), KDL kinematics solver, OMPL/CHOMP/Pilz planners, and controller configuration.

movensys_manipulator_isaac_config

Scenario executables, launch files, NVIDIA Isaac ROS integration configs, camera configs, and the MoveIt2Client C++ library.

Kinematic Chain#

world_manipulator -> table -> stand -> Link0
  -> joint1 (revolute) -> Link1
    -> joint2 (revolute) -> Link2
      -> joint3 (revolute) -> Link3
        -> joint4 (revolute) -> Link4
          -> joint5 (revolute) -> Link5
            -> joint6 (revolute) -> Link6
              -> bracket (fixed) -> gripper (fixed)
                -> picker_1_joint (prismatic) -> picker_1
                -> picker_2_joint (prismatic) -> picker_2

The arm group movensys_manipulator_arm is defined as the chain from Link0 to Link6 (6 revolute joints). The end-effector group movensys_manipulator_eef includes the bracket and gripper links. The gripper has two prismatic picker joints with a range of 0–0.045 m.

Source Files#

MoveIt2 Client Library (src/moveit2_client.cpp, include/moveit2_client.hpp)

A reusable C++ class wrapping MoveGroupInterface that provides:

  • jointMovement() – Plan and execute to a joint-space target

  • absoluteBaseEefCartesian() – Cartesian path in base frame using computeCartesianPath() with TimeOptimalTrajectoryGeneration

  • absoluteBaseEefJointMovement() – IK pose target with setPoseTarget()

  • relativeBaseEefCartesian() – Relative Cartesian move in base frame

  • relativeToolEefCartesian() – Relative Cartesian move in tool frame (applies delta in end-effector coordinate system)

  • setGripper() – Calls /wmx/set_gripper service (std_srvs/SetBool)

  • lookupTF() – Cached TF lookup via /tf subscription

  • getCurrentEefPose() – Current end-effector pose from MoveIt state

Configurable parameters set per-scenario: vel_scale, acc_scale, delay_exec, delay_gripper, max_step, planning_time, jump_threshold, timeout, planning_attempts, replan, replan_attempts.

Simulation Bridge (src/simulation_action.cpp)

The simulation_action node bridges MoveIt2 and Isaac Sim in simulation mode:

  • Creates a FollowJointTrajectory action server at /movensys_manipulator_arm_controller/follow_joint_trajectory

  • Subscribes to /joint_states (published by Isaac Sim)

  • Publishes each trajectory point to /joint_command (consumed by Isaac Sim) with the actual inter-point time delay

  • Provides /wmx/set_gripper service – sets gripper position to 0.045 (closed) or 0.000 (open) and publishes updated joint command

  • Trajectory points are padded from 6 to 8 values (appending gripper state for picker_1_joint and picker_2_joint)

Scenario Executables:

  • stage1and2_trajectory_cpp (src/stage1and2_trajectory.cpp) – Demonstrates absolute/relative Cartesian, joint movement, and gripper control with vel_scale=0.3, acc_scale=0.3

  • stage3_apriltag_cpp (src/stage3_apriltag.cpp) – AprilTag-guided pick-and-place for 4 colored objects (green, blue, grey, red) using tag36h11 family markers. Uses visual servoing loop to converge on tag within tolerance (30 mm position, 50 mrad orientation). Runs at vel_scale=1.0, acc_scale=1.0

  • stage4_nvblox_cpp (src/stage4_nvblox.cpp) – Moves between two poses with obstacle-aware planning via cuMotion + NvBlox ESDF

Prerequisites#

Hardware#

  • NVIDIA GPU with CUDA support (RTX 5070/5090 tested for desktop, Jetson Orin for embedded)

  • Stage 4 is recommended to run on a GPU with 16 GB or more

  • Intel RealSense depth camera (for Stage 3 real robot and Stage 4)

  • Dobot CR3A manipulator with WMX EtherCAT drives (for HiL/Real modes)

Software#

  • Ubuntu 22.04.5 LTS (Jammy)

  • ROS 2 Humble

  • NVIDIA Driver (570-open for RTX 5070, 580-open for RTX 5090)

  • Docker with NVIDIA Container Toolkit

  • Git LFS

  • Isaac Sim 5.0.0

  • Isaac ROS release-3.2 repositories (cloned by setup.sh)

  • CycloneDDS middleware (rmw_cyclonedds_cpp)

  • 3D USD assets from robotics_isaac_sim repository

For HiL and Real Robot modes, the core WMX ROS2 packages must be built and the WMX Runtime (LMX) installed (see Getting Started).

Installation#

Step 1: Environment Variables#

Add to ~/.bashrc:

export ROS_DOMAIN_ID=70
export HOST_USER_UID=1000        # replace with: id -u
export HOST_USER_GID=1000        # replace with: id -g

export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp

export ISAAC_ROS_WS=~/workspaces/isaac_ros-dev
export MANIPULATOR_ROS_WS=~/workspaces/movensys_manipulator_ws

source /opt/ros/humble/setup.bash
source ~/workspaces/movensys_manipulator_ws/install/setup.bash

Then reload:

source ~/.bashrc

Step 2: Clone Repository#

mkdir -p ${MANIPULATOR_ROS_WS}/src
cd ${MANIPULATOR_ROS_WS}/src
git clone git@bitbucket.org:mvs_app/movensys_isaac_manipulator.git

Step 3: Run Setup Script#

The setup.sh script performs the following:

  • Configures CycloneDDS network buffer sizes (26 MB for rmem/wmem)

  • Installs ROS 2 dependencies (MoveIt2, ros2_control, CycloneDDS, etc.)

  • Clones Isaac ROS repositories (isaac_ros_common, isaac_manipulator, isaac_ros_nvblox, ros2_robotiq_gripper, serial) into ${ISAAC_ROS_WS}/src/

  • Downloads NGC assets for AprilTag and NvBlox

  • Configures RealSense support in Isaac ROS common

  • Patches isaac_manipulator_pick_and_place with revised launch/CMake files

  • Launches the Isaac ROS development container via run_dev.sh

cd ${MANIPULATOR_ROS_WS}/src/movensys_isaac_manipulator
sudo chmod +x setup.sh
./setup.sh

Step 4: Build Docker Container#

Two Docker Compose files are provided:

File

Base Image

Platform

docker/manipulator_desktop.yaml

isaac_ros_dev-x86_64

Desktop GPU (RTX series)

docker/manipulator_mic.yaml

isaac_ros_dev-aarch64

NVIDIA Jetson / MIC-713 / MIC-733ao

For Desktop:

cd ${MANIPULATOR_ROS_WS}/src/movensys_isaac_manipulator/docker
docker compose -f manipulator_desktop.yaml build
docker compose -f manipulator_desktop.yaml up -d

For MIC / Jetson:

cd ${MANIPULATOR_ROS_WS}/src/movensys_isaac_manipulator/docker
docker compose -f manipulator_mic.yaml build
docker compose -f manipulator_mic.yaml up -d

The container startup command automatically builds all Isaac ROS packages and the movensys_manipulator packages inside the container. Monitor the build:

docker logs -f movensys_isaac_manipulator_container

Wait for ====== Build Terminated ======= to appear.

Step 5: Build Host Workspace#

cd ${MANIPULATOR_ROS_WS}
colcon build
source ~/.bashrc

Step 6: Download 3D Assets#

Clone the Isaac Sim USD files:

git clone git@bitbucket.org:mvs_app/robotics_isaac_sim.git ~/robotics_isaac_sim

Configuration#

MoveIt2 Configuration#

Controller (movensys_manipulator_moveit_config/config/moveit_controllers.yaml):

The MoveIt controller manager is configured with a single FollowJointTrajectory controller named movensys_manipulator_arm_controller controlling joints 1–6:

moveit_controller_manager: moveit_simple_controller_manager/MoveItSimpleControllerManager

moveit_simple_controller_manager:
  controller_names:
    - movensys_manipulator_arm_controller

  movensys_manipulator_arm_controller:
    action_ns: follow_joint_trajectory
    type: FollowJointTrajectory
    default: true
    joints:
      - joint1
      - joint2
      - joint3
      - joint4
      - joint5
      - joint6

Joint Limits (movensys_manipulator_moveit_config/config/joint_limits.yaml):

All 6 joints: max_velocity: 3.0 rad/s, max_acceleration: 3.0 rad/s2.

Kinematics (movensys_manipulator_moveit_config/config/kinematics.yaml):

movensys_manipulator_arm:
  kinematics_solver: kdl_kinematics_plugin/KDLKinematicsPlugin
  kinematics_solver_search_resolution: 0.005
  kinematics_solver_timeout: 0.1

Planning Pipelines: OMPL, CHOMP, and Pilz Industrial Motion Planner are configured as available planners. In Stage 2+, isaac_ros_cumotion is injected as the default planning pipeline.

cuMotion Configuration#

XRDF (movensys_manipulator_description/urdf/movensys_manipulator.xrdf):

The Extended Robot Description Format file defines cuMotion-specific parameters:

  • base_link: Link0

  • tool_frames: ["Link6"]

  • cspace.joint_names: ["joint1"..."joint6"]

  • cspace.velocity_limits: [3.0, 3.0, 3.0, 3.0, 3.0, 3.0]

  • cspace.acceleration_limits: [3.0, 3.0, 3.0, 3.0, 3.0, 3.0]

  • cspace.jerk_limits: [50, 50, 50, 50, 50, 50]

  • cspace.retract_config: [1.57, 0.0, 1.57, 0.0, -1.57, 0.0]

  • Collision geometry: auto-generated spheres for all links with self-collision ignore rules for adjacent/skip-one link pairs

  • buffer_distance: 0.0 m for world collision, 0.002 m for self-collision

cuMotion Planning Plugin (movensys_manipulator_isaac_config/config/isaac_ros_cumotion_planning.yaml):

planning_plugin: isaac_ros_cumotion_moveit/CumotionPlanner
request_adapters: >-
  default_planner_request_adapters/FixWorkspaceBounds
  default_planner_request_adapters/FixStartStateBounds
  default_planner_request_adapters/FixStartStateCollision
  default_planner_request_adapters/FixStartStatePathConstraints
start_state_max_bounds_error: 0.1
num_steps: 32

NvBlox Configuration#

Base Config (movensys_manipulator_isaac_config/config/nvblox_movensys_base.yaml):

  • voxel_size: 0.01 m

  • global_frame / pose_frame: world_manipulator

  • esdf_mode: 3d (for manipulation)

  • integrate_depth_rate_hz: 40.0

  • update_esdf_rate_hz: 10.0

Workspace Bounds (movensys_manipulator_isaac_config/config/movensys_sim.yaml):

static_mapper:
  workspace_bounds_type: "bounding_box"
  workspace_bounds_min_corner_x_m: -0.5
  workspace_bounds_min_corner_y_m: -0.4
  workspace_bounds_min_height_m: 0.0
  workspace_bounds_max_corner_x_m: 0.5
  workspace_bounds_max_corner_y_m: 0.4
  workspace_bounds_max_height_m: 0.7

Robot Segmenter (movensys_manipulator_isaac_config/config/robot_segmenter_movensys.yaml):

Filters robot pixels from depth images before feeding to NvBlox:

  • Input: /image_nvblox/depth, /image_nvblox/camera_info

  • Output: /robot_segmenter/world_depth (robot-free depth)

  • distance_threshold: 0.15 m from collision spheres

Camera Configuration#

Two Intel RealSense camera configs are provided:

  • config/realsense_mono.yaml – RGB-only at 640x480@15fps for hand camera (Stage 3 AprilTag detection), remapped to /image_hand/rgb

  • config/realsense_mono_depth.yaml – RGB + depth at 640x480@15fps for NvBlox camera (Stage 4), remapped to /image_nvblox/rgb and /image_nvblox/depth

CycloneDDS Configuration#

docker/cyclonedds.xml configures:

  • MaxMessageSize: 65500 bytes

  • SocketReceiveBufferSize: 10 MB minimum

  • SocketSendBufferSize: 2 MB minimum

  • MaxAutoParticipantIndex: 120

Docker Environment#

Key environment variables in the Docker container (.env):

  • RMW_IMPLEMENTATION: rmw_cyclonedds_cpp

  • CYCLONEDDS_URI: file:///home/admin/cyclonedds.xml

  • CONTAINER_NAME: movensys_isaac_manipulator_container

Isaac Sim USD Files#

USD File

Environment

Target Stages

simulation_1_to_3.usd

Simulation

Stages 1–3

hil_1_to_3.usd

Hardware-in-the-Loop

Stages 1–3

demo_1_to_3.usd

Real-Robot Demo

Stages 1–3

simulation_4.usd

Simulation

Stage 4

Usage#

Entering the Docker Container#

All Isaac ROS components (cuMotion, AprilTag, NvBlox) run inside the Docker container. Enter it with:

docker exec -u admin -it movensys_isaac_manipulator_container \
  bash -lc 'source /opt/ros/humble/setup.bash && \
            source /home/admin/ws/install/setup.bash && \
            source /workspaces/isaac_ros-dev/install/setup.bash && \
            exec bash -i'

Stage 1: Basic Trajectory (Simulation)#

  1. Open Isaac Sim and load ~/robotics_isaac_sim/isaac_manipulator/simulation_1_to_3.usd, then press Play.

  2. Terminal 1 (host) – Launch the simulation bridge:

    ros2 run movensys_manipulator_isaac_config simulation_action \
  --ros-args -p use_sim_time:=true

  3. Terminal 2 (host) – Launch MoveIt2:

    ros2 launch movensys_manipulator_moveit_config \
  movensys_manipulator_moveit.launch.py use_sim_time:=true

  4. Terminal 3 (host) – Execute trajectory test:

    ros2 launch movensys_manipulator_isaac_config \
  stage1and2_trajectory.launch.py use_sim_time:=true

    The script executes: absolute Cartesian moves, relative base-frame moves, relative tool-frame moves, joint-space moves, and gripper open/close.

Stage 2: cuMotion GPU Planning (Simulation)#

  1. Open Isaac Sim with simulation_1_to_3.usd and press Play.

  2. Terminal 1 (host) – Launch simulation bridge:

    ros2 run movensys_manipulator_isaac_config simulation_action \
  --ros-args -p use_sim_time:=true

  3. Terminal 2 (container) – Launch cuMotion + MoveIt2:

    ros2 launch movensys_manipulator_isaac_config \
  isaac_cumotion.launch.py use_sim_time:=true

    This launch file dynamically patches the MoveIt2 launch to inject isaac_ros_cumotion as the default planning pipeline, then starts the cumotion_planner_node with the XRDF and URDF files.

  4. Terminal 3 (host) – Execute trajectory test:

    ros2 launch movensys_manipulator_isaac_config \
  stage1and2_trajectory.launch.py use_sim_time:=true

Stage 3: AprilTag Pick & Place (Simulation)#

  1. Open Isaac Sim with simulation_1_to_3.usd and press Play.

  2. Terminal 1 (host) – Launch simulation bridge:

    ros2 run movensys_manipulator_isaac_config simulation_action \
  --ros-args -p use_sim_time:=true

  3. Terminal 2 (container) – Launch AprilTag + cuMotion:

    ros2 launch movensys_manipulator_isaac_config \
  isaac_apriltag.launch.py use_sim_time:=true

    This launches the isaac_ros_apriltag composable node (subscribed to /image_hand/rgb and /image_hand/camera_info, tag size 0.05 m, tag36h11 family) together with the cuMotion planner.

  4. Terminal 3 (host) – Execute pick-and-place:

    ros2 launch movensys_manipulator_isaac_config \
  stage3_apriltag.launch.py use_sim_time:=true target_spawn:=false

    The workflow for each of the 4 objects (tags 5, 9, 7, 11):

    1. Move to scan position

    2. Visual servo loop: read AprilTag TF, move relative to tool frame, repeat until position error < 30 mm and orientation error < 50 mrad

    3. Apply tag-to-target offset (x=+0.01, y=-0.065)

    4. Move down 0.21 m, close gripper

    5. Move up, travel to box position, move down, open gripper

Stage 4: NvBlox Obstacle Avoidance (Simulation)#

  1. Open Isaac Sim with simulation_4.usd and press Play.

  2. Terminal 1 (host) – Launch simulation bridge:

    ros2 run movensys_manipulator_isaac_config simulation_action \
  --ros-args -p use_sim_time:=true

  3. Terminal 2 (host) – Launch camera transform:

    ros2 launch movensys_manipulator_isaac_config \
  camera_nvblox_transform.launch.py simulation:=true

    This publishes a static TF from world_manipulator to camera_nvblox_color_optical_frame (simulation) or camera_nvblox_link (real).

  4. Terminal 3 (container) – Launch cuMotion + NvBlox:

    ros2 launch movensys_manipulator_isaac_config \
  isaac_cumotion_nvblox.launch.py use_sim_time:=true

    This launches:

    • MoveIt2 with cuMotion as default planner

    • manipulation_container with NvBlox composable node (3D ESDF mode)

    • robot_segmenter_node – filters robot from depth images

    • cumotion_planner_node with read_esdf_world: True for obstacle-aware planning via /nvblox_node/get_esdf_and_gradient service

    Note

    On RTX 5000-series GPUs, PyTorch requires CUDA 12.8+ but the Docker container uses CUDA 12.6. A one-time JIT compilation (~3 minutes) occurs on first run. Compiled files are cached for subsequent runs.

  5. Terminal 4 (host) – Execute obstacle-avoidance demo:

    ros2 launch movensys_manipulator_isaac_config \
  stage4_nvblox.launch.py use_sim_time:=true

    The demo moves the arm between two poses (x=-0.35 and x=+0.35) while cuMotion plans around detected obstacles.

Hardware-in-the-Loop Mode#

In HiL mode, the WMX ROS2 stack drives the physical robot while Isaac Sim mirrors the motion:

  1. Open Isaac Sim with hil_1_to_3.usd and press Play.

  2. Launch the WMX ROS2 manipulator stack on the IPC (see Getting Started).

  3. IPC – Launch MoveIt2:

    ros2 launch movensys_manipulator_moveit_config \
  movensys_manipulator_moveit.launch.py

  4. IPC – Execute scenario:

    ros2 launch movensys_manipulator_isaac_config \
  stage1and2_trajectory.launch.py

    Note: use_sim_time is not set (defaults to false) and simulation_action is not launched. The WMX ROS2 follow_joint_trajectory_server handles the action.

Utility Tools#

URDF Visualization:

ros2 launch movensys_manipulator_description movensys_manipulator_rviz.launch.py

Joint GUI with Isaac Sim sync:

ros2 launch movensys_manipulator_description movensys_manipulator_isaac_gui.launch.py

This publishes joint_state_publisher_gui output to /joint_command (remapped from /joint_states) for direct Isaac Sim joint control.

Camera Transform Tuning:

ros2 launch movensys_manipulator_isaac_config \
  camera_transform_tuning.launch.py use_sim_time:=true

A Tkinter GUI (scripts/camera_transform_tuning.py) with interactive sliders for tuning the world_manipulator to camera static transform. Publishes to /tf_static in real time with configurable step sizes for position (meters) and rotation (radians).

How It Connects to WMX ROS2#

The Isaac manipulator workspace is designed to work alongside the core WMX ROS2 packages (Packages). The connection point is the FollowJointTrajectory action interface and the /joint_states topic.

Mode Comparison#

Component

Simulation Mode

HiL / Real Mode

Action server

simulation_action node

WMX ROS2 follow_joint_trajectory_server

Action name

/movensys_manipulator_arm_controller/follow_joint_trajectory

/movensys_manipulator_arm_controller/follow_joint_trajectory

Joint state source

Isaac Sim (/joint_states)

WMX ROS2 encoder feedback (/joint_states)

Trajectory execution

Per-point publish with time delay to /joint_command

WMX cubic spline interpolation via EtherCAT

Gripper service

simulation_action (sets picker position)

WMX ROS2 /wmx/set_gripper (EtherCAT digital I/O)

Simulator feedback

Isaac Sim is the physics engine

Isaac Sim mirrors via /isaacsim/joint_command

Switching between modes requires no code changes to the scenario executables (stage1and2_trajectory_cpp, stage3_apriltag_cpp, etc.). The only differences are:

  1. Which action server is running (simulation_action vs WMX ROS2)

  2. Whether use_sim_time is set

  3. Which Isaac Sim USD file is loaded

The MoveIt2 controller configuration (movensys_manipulator_arm_controller) uses the same action namespace in both modes, so MoveIt2 sends trajectories to whichever action server is active.

For building custom applications that use both workspaces, see Building Custom Applications.
