MoveIt2 Motion Planning#

Overview#

MoveIt2 is the primary motion-planning integration for WMX ROS2. The movensys-manipulator repository provides the movensys_manipulator_moveit_config package, which wraps MoveIt2 with a high-level service API and executes the planned motion on the robot through the WMX ROS2 stack.

MoveIt2 produces collision-aware, time-parameterized trajectories; WMX runs them on a deterministic real-time cycle. The same configuration drives three execution modes: pure simulation (Isaac Sim or Gazebo), hardware-in-the-loop (simulator visuals with the real WMX runtime), and real robot control over EtherCAT.

Architecture#

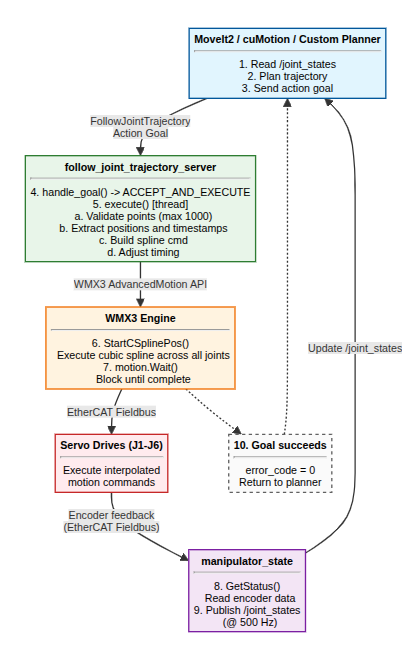

MoveIt2 integration — end-to-end data flow

The trajectory_api node (in movensys_manipulator_moveit_config) hosts a MoveIt2 MoveGroupInterface client and exposes simple pose/joint services under /wmx/moveit2/. For each request it:

  1. Sets a joint or Cartesian target on the move group.

  2. Plans with MoveIt2 (OMPL), or computes a Cartesian path for straight-line moves.

  3. Time-parameterizes the trajectory with Time-Optimal Trajectory Generation (TOTG), applying velocity and acceleration scaling.

  4. Executes it, which streams the trajectory to the WMX joint_trajectory_controller for deterministic execution on the servos.

It also publishes the live end-effector pose on /wmx/moveit2/eef_pose (geometry_msgs/PoseStamped) and orientation on /wmx/moveit2/eef_rpy (geometry_msgs/Vector3Stamped), and calls /wmx/set_gripper for gripper actions.

Setup#

The MoveIt2 integration runs inside the movensys-manipulator Docker container. After cloning the repository and configuring the host environment, enter the container with the mros helper. Key environment variables:

Variable

Purpose

ROS_DISTRO

humble or jazzy

MANIPULATOR_MODEL

dobot_cr3a or dobot_cr5a (selects the MoveIt config)

MOVENSYS_ROS_VERSION

isaac-ros_4.1, isaac-ros_3.2, or general

CPU_ARCH

amd64 or arm64

See the movensys-manipulator README for the full host setup, CycloneDDS buffer tuning, and container build steps.

Running MoveIt2#

Bring up the MoveIt2 stack (commands run through the mros container helper). For a real robot:

# Start MoveIt2 (move_group + trajectory_api services)
mros ros2 launch movensys_manipulator_moveit_config moveit.launch.py

# Run a trajectory test, or send your own service calls
mros ros2 launch movensys_manipulator_moveit_config trajectory_test.launch.py

For simulation or hardware-in-the-loop, start the simulator bridge first and pass use_sim_time:=true:

mros ros2 launch movensys_manipulator_moveit_config sim_bridge.launch.py \
     simulator:=isaacsim use_sim_time:=true
mros ros2 launch movensys_manipulator_moveit_config moveit.launch.py \
     use_sim_time:=true

Service API#

The trajectory_api node exposes these services. Pose services use movensys_manipulator_moveit_config/srv/MovePose (pos = XYZ metres, ori = roll/pitch/yaw radians); joint services use MoveJoints.

Service

Type

Purpose

/wmx/moveit2/get_eef_pose

GetEefPose

Read the current end-effector pose (pos + rpy)

/wmx/moveit2/absolute_base_eef_cartesian

MovePose

Cartesian move to an absolute pose (base frame)

/wmx/moveit2/relative_base_eef_cartesian

MovePose

Cartesian move by a relative offset (base frame)

/wmx/moveit2/relative_tool_eef_cartesian

MovePose

Cartesian move by a relative offset (tool frame)

/wmx/moveit2/absolute_base_eef_joint_movement

MovePose

Plan to a pose target in joint space (base frame)

/wmx/moveit2/joint_movement

MoveJoints

Absolute joint-space move

/wmx/moveit2/relative_joint_movement

MoveJoints

Relative (incremental) joint-space move

Examples#

Read the current end-effector pose:

mros ros2 service call /wmx/moveit2/get_eef_pose \
     movensys_manipulator_moveit_config/srv/GetEefPose '"{}"'

Absolute Cartesian move (base frame):

mros ros2 service call /wmx/moveit2/absolute_base_eef_cartesian \
     movensys_manipulator_moveit_config/srv/MovePose \
     '"{pos: [-0.158, -0.071, 0.346], ori: [3.14159265, 0.0, -3.14159265]}"'

Absolute joint move:

mros ros2 service call /wmx/moveit2/joint_movement \
     movensys_manipulator_moveit_config/srv/MoveJoints \
     '"{joint_names: [joint1, joint2, joint3, joint4, joint5, joint6], joint_values: [0.0, 0.0, -1.57, 0.0, 1.57, 0.0]}"'

Open or close the gripper:

mros ros2 service call /wmx/set_gripper std_srvs/srv/SetBool '"{data: true}"'

Trajectory Execution#

Planned trajectories are streamed to the WMX joint_trajectory_controller, which executes them with cubic spline interpolation (AdvancedMotion::StartCSplinePos()) on a deterministic real-time cycle. See ROS2 Actions for the execution details and limits.
